| ชื่อแบรนด์: | Greenson |
| MOQ: | 1 |
| ราคา: | $790000 |
| เงื่อนไขการจ่ายเงิน: | แอล/C,ที/ที |

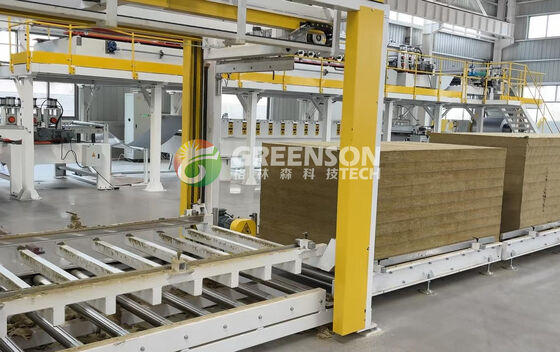

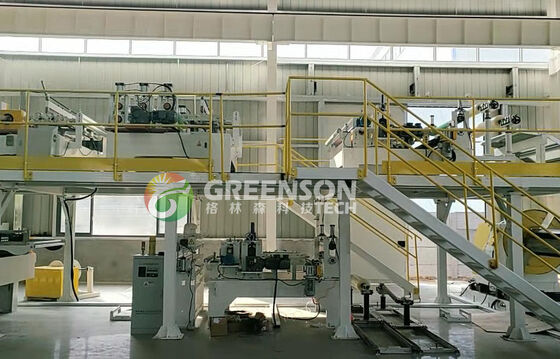

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.
The entire line is independently developed, processed, and assembled, using solid materials with high safety standards. Equipped with precision machining equipment, it features the flattest dual-track plates in the country to ensure optimal quality and efficiency. The fully automated system reduces labor costs by at least 50%.
| Material Type | Color steel sheet; Galvanized sheet; Aluminum sheet |
|---|---|
| Material Thickness | 0.3-0.8 mm |
| Material Width | ≤1250 Mpa |
| Suitable Panel Length | 2000-18000 mm |
| Suitable Panel Width | 500-1200 mm |
| Suitable Panel Thickness | 30-250 mm (excluding corrugation height) |
| Production Speed | 3-15 m/min (Adjustable) |

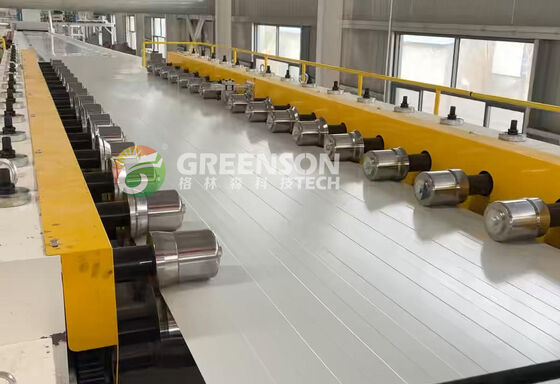

| Valid Length of Double Belt Conveyor | 12000-42000 mm |
| Work Pressure on Pouring Foam | 150-200 Bar |
| Total Power | 660 kW / 300 kW |
| Total Dimensions | 130000 × 15000 × 6000 mm (Length × Width × Height) |
